BATTERY MODULE 10K PACK LV
TECHNICAL SPECS
POWER
Battery Type
Capacity
Recommended Depth of Discharge
Max. Depth of Discharge
Voltage
Certification
Pack
Max Charge/Discharge
Operating Temp
Storage Temp
Humidity Conditions
Lithium lon Battery
10 kWh
80%
90%
51.2 V
Cell: UL1642
Refer to UN38.3, UL9540A ,UL1973 CE RoHS and IEC62619
100A/200A
-10° to 50°C/14°F to 122F
15°to 30°C/59°F to 86°F
5% to 95%
MISCELLANEOUS
Installation
Weight
Dimensions
Warranty
Indoor/Outdoor
100 kg
(H x W x D)
760mm x 500mm x 215mm
10-year standard warranty

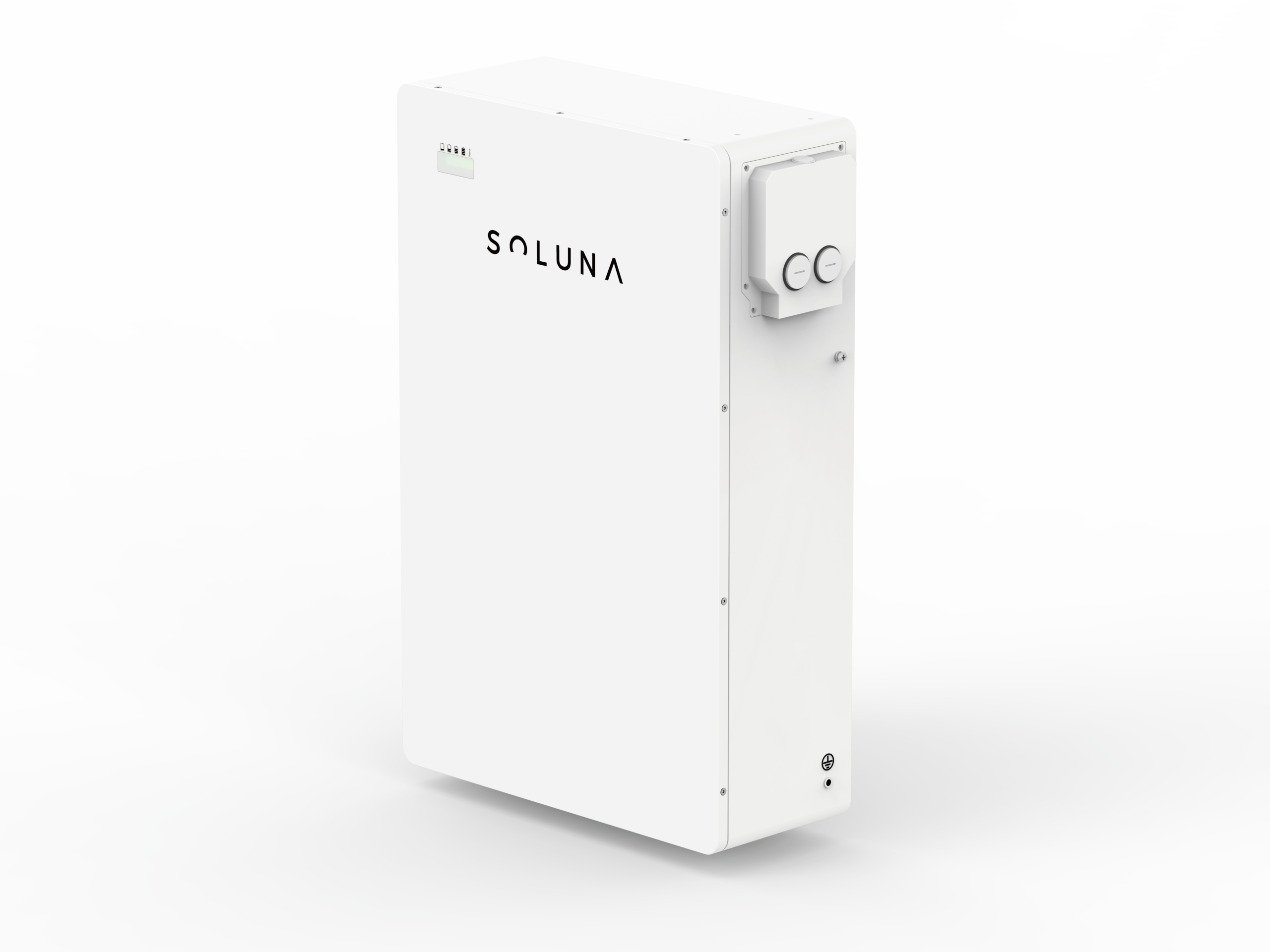

BATTERY MODULE 16K Pack LV
TECHNICAL SPECS
POWER
Battery Type
Capacity
Recommended Depth of Discharge
Max. Depth of Discharge
Voltage
Certification
Max Charge/Discharge
Operating Temp
Storage Temp
Humidity Conditions
Lithium lon Battery
16.07 kWh
80%
90%
51.2 V
TBD
220A
-10° to 50°C
-20° to 60°C
5% to 95%
MISCELLANEOUS
Installation
Weight
Dimensions
Warranty
Indoor/Outdoor
127 kg
(H x W x D)
545mm x 220mm x 850mm
10-year standard warranty
BATTERY MODULE 32K Pack LV
TECHNICAL SPECS
POWER
Battery Type
Capacity
Recommended Depth of Discharge
Max. Depth of Discharge
Voltage
Certification
Max Charge/Discharge
Operating Temp
Storage Temp
Humidity Conditions
Lithium lon Battery
32.153 kWh
80%
90%
51.2 V
TBD
314A
-10° to 50°C
-20° to 60°C
5% to 95%
MISCELLANEOUS
Installation
Weight
Dimensions
Warranty
Indoor/Outdoor
260 kg
(H x W x D)
1125mm x 665mm x 220mm
10-year standard warranty
BATTERY MODULE BES 5K PACK
TECHNICAL SPECS
POWER
Battery Type
Capacity
Recommended Depth of Discharge
Max. Depth of Discharge
Voltage
Certification
Max Charge/Discharge
Operating Temp
Storage Temp
Humidity Conditions
Lithium lon Battery
5.12 kWh
80%
90%
51.2 V
Cell: UL1642
75A
-10° to 50°C / 14°F to 122°F
15° to 30°C / 59°F to 86°F
5% to 95%
MISCELLANEOUS
Installation
Weight
Dimensions
Warranty
Indoor/Outdoor
100 kg
(H x W x D)
760mm x 500mm x 215mm
10-year standard warranty

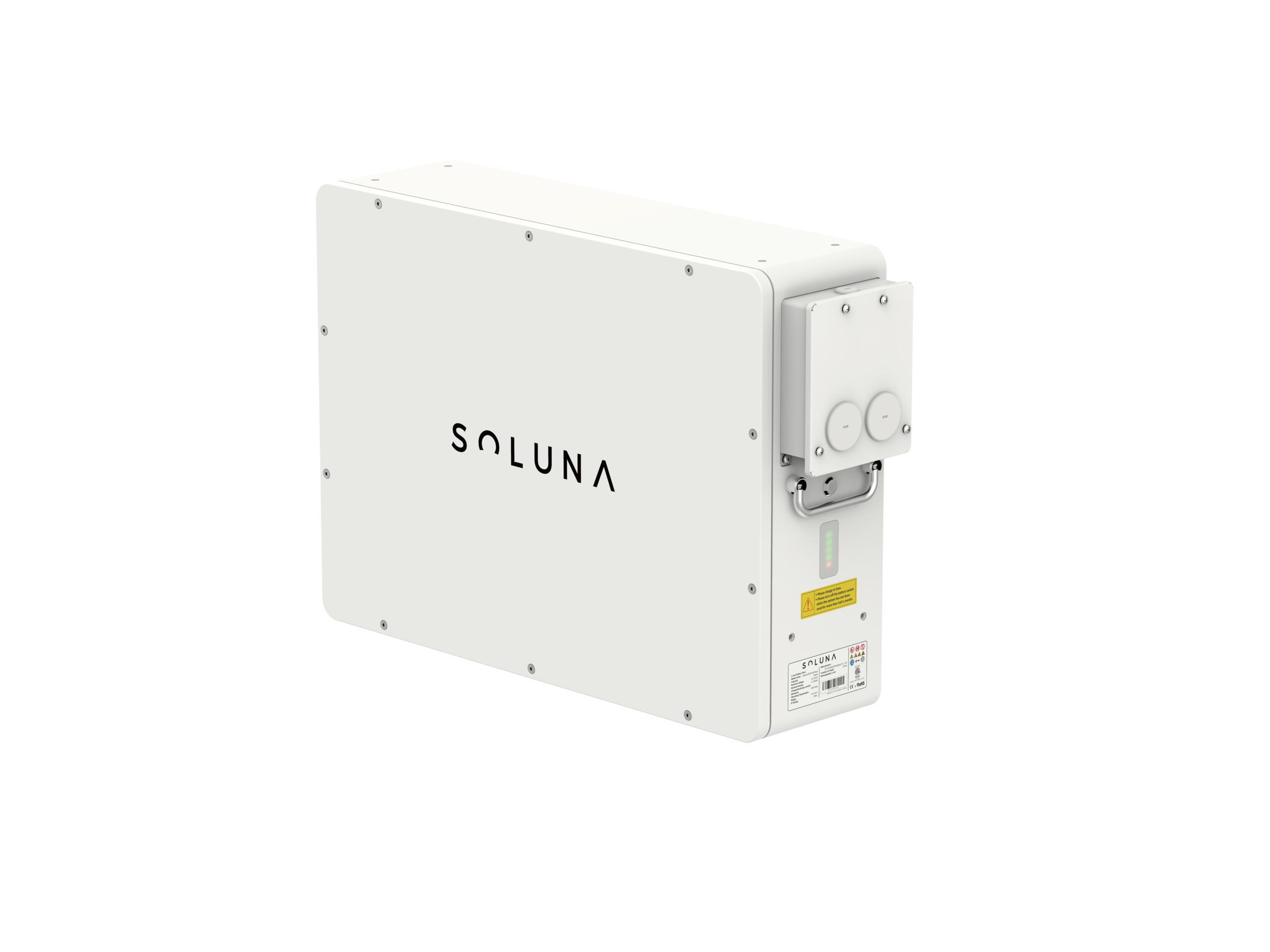

BATTERY MODULE EOS 5K
TECHNICAL SPECS
POWER
Battery Type
Capacity
Recommended Depth of Discharge
Max. Depth of discharge
Voltage
Certification
Max Charge/Discharge
Operating Temp
Storage Temp
Humidity Conditions
Lithium lon Battery
5.12 kWh
80%
90%
51.2 V
Cell: UL1642, Refer to UN38.3, UL1973 and IEC62619,CE ROHS
100A
-10° to 50°C / 14°F to 122°F
-30° to 60°C / -22°F to 140°F
5% to 95%
MISCELLANEOUS
Installation
Weight
Dimensions
Warranty
Indoors/Outdoors
146.8 kg / 324 lbs
(H x W x D)
1205mm x 654mm x 227mm 47.2” x 23.6“ x 7.9”
10-year standard warranty
Lyra 5K PACK
TECHNICAL SPECS
POWER
Battery Type
Capacity
Recommended Depth of Discharge
Max. Depth of Discharge
Voltage
Certification
Max Charge/Discharge
Operating Temp
Storage Temp
Humidity Conditions
Lithium lon Battery
5.12 kWh
80%
90%
51.2 V
IEC62619.EMC.ROHS
75/100A
-10° to 50°C
15° to 30°C
5% to 95%
MISCELLANEOUS
Installation
Weight
Dimensions
Warranty
Indoor/Outdoor
47 kg
(H x W x D)
420mm x 160mm x 595mm
10-year standard warranty
BATTERY MODULE 10K PACK HV
TECHNICAL SPECS
POWER
Battery Type
Capacity
Recommended Depth of Discharge
Depth of discharge
Voltage
Certification
Max Charge/Discharge
Operating Temp
Storage Temp
Humidity Conditions
Lithium lon Battery
10 kWh
80%
90%
268.8 V
Cell: UL1642 Refer to UN38.3, UL1973 CE RoHS and IEC62619
40A/40A
-10° to 50°C / 14°F to 122°F
-30° to 60°C / -22°F to 140°F
5% to 95%
MISCELLANEOUS
Installation
Weight
Dimensions
Warranty
Indoors/Outdoors
103 kg / 227 lbs
(H x W x D)
971mm x 654mm x 227mm 38.2” x 25.7“ x 8.9”
10-year standard warranty
BATTERY MODULE 15K PACK HV
TECHNICAL SPECS
POWER
Battery Type
Capacity
Recommended Depth of Discharge
Max. Depth of discharge
Voltage
Certification
Pack
Max Charge/Discharge
Operating Temp
Storage Temp
Humidity Conditions
Lithium lon Battery
15 kWh
80%
90%
384 V
Cell: UL1642
Refer to UN38.3, UL1973,CE RoHS and IEC62619 design
40A/40A
-10° to 50°C / 14°F to 122°F
-30° to 60°C / -22°F to 140°F
5% to 95%
MISCELLANEOUS
Installation
Weight
Dimensions
Warranty
Indoors/Outdoors
146.8 kg / 324 lbs
(H x W x D)
1205mm x 654mm x 227mm 47.2” x 23.6“ x 7.9”
10-year standard warranty
Soluna HV
TECHNICAL SPECS
POWER
Product Model
Battery Module Type
Battery Capacity
Cycle Life
Max. Single Cluster Dimension
Number of expandablebattery units
Warranty
HV
LiFePO4
40 Ah
≥6000
650mm x 320mm x 1200mm
10
10-year standard warranty
Soluna HV Ultra
TECHNICAL SPECS
POWER
Product Model
Battery Module Type
Battery Capacity
Cycle Life
Max. Single Cluster Dimension
Number of expandablebattery units
Warranty
HV Ultra
LiFePO4
100 Ah
≥8000
710mm x 438mm x 1878mm
10
10-year standard warranty
Soluna Ultra X
TECHNICAL SPECS
POWER
Product Model
Battery Module Type
Battery Capacity
Cycle Life
Max. Single Cluster Dimension
Number of expandablebattery units
Warranty
Ultra X
LiFePO4
314 Ah
≥8000
840mm x 465mm x 1172mm
10
10-year standard warranty
POWER CELL
TECHNICAL SPECS
POWER
Battery type
Total Energy Capacity
Usable Energy Capacity
Battery Capacity
Voltage Range
Nominal Voltage
Max Charge/Discharge
Recommended Depth of Discharge
Max. Depth of diacharge
Power consumption
Operating Temperature
Certification
Lithium lon battery
150kWh
135kWh
200Ah
672-840V
769V
100 A / 200A
80%
90%
TBD
-10℃ to 50℃
IEC62619,CE UN38.3
