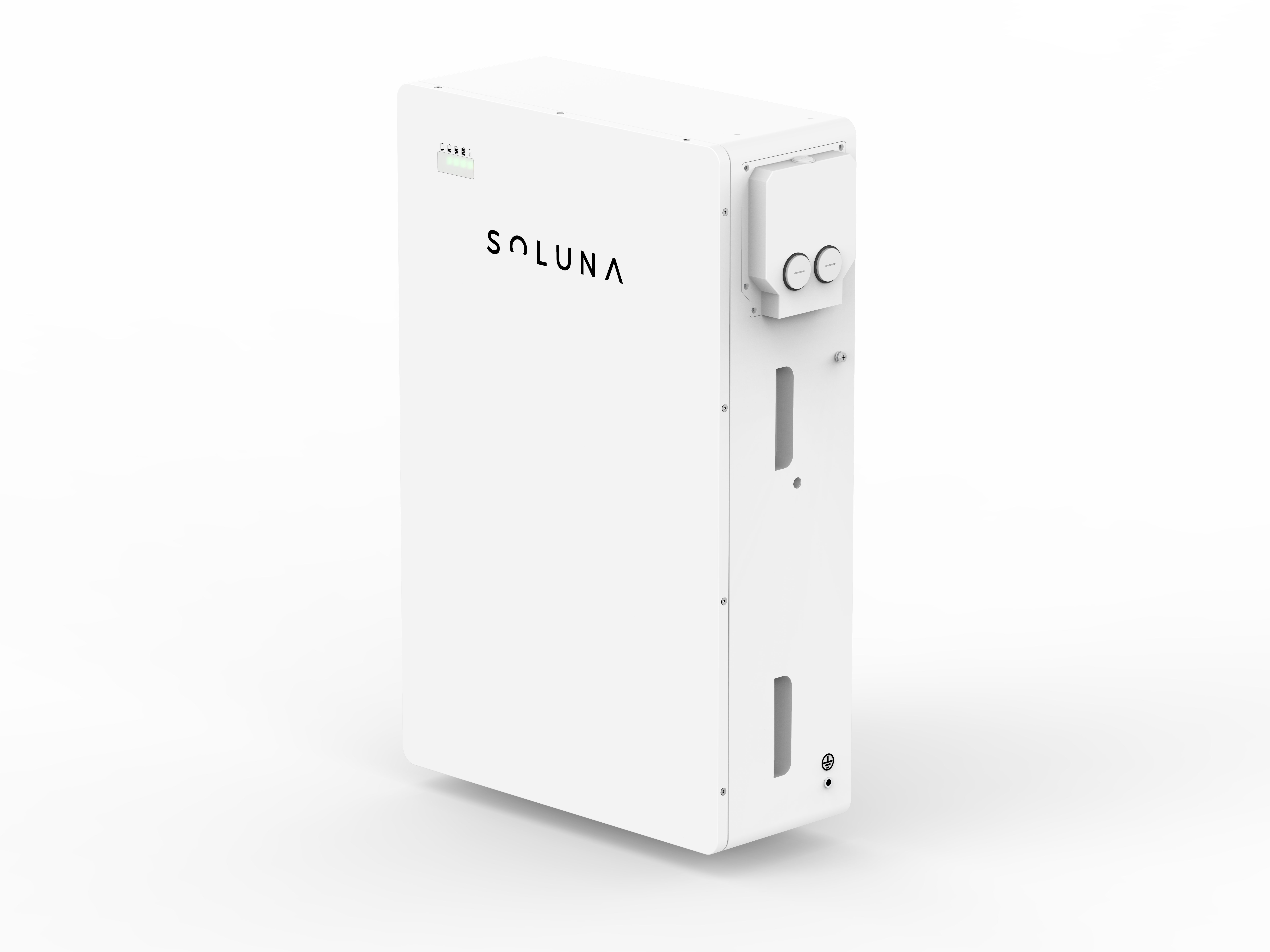

BATTERY MODULE 9.6K Pack LV
TECHNICAL SPECS
POWER
Battery Type
Capacity
Recommended Depth of Discharge
Max. Depth of Discharge
Voltage
Certification
Pack
Max Charge/Discharge
Operating Temp
Storage Temp
Humidity Conditions
Lithium lon Battery
9.6 kWh
80%
90%
48 V
Cell: UL1642
Refer to UN38.3,UL1973.IEC62619 and CE ROHS
100A/200A
-10° to 50°C
-20° to 60°C
5% to 95%
MISCELLANEOUS
Installation
Weight
Dimensions
Warranty
Indoor/Outdoor
90 kg
(H x W x D)
760mm x 500mm x 215mm
10-year standard warranty
BATTERY MODULE 10K PACK LV
TECHNICAL SPECS
POWER
Battery Type
Capacity
Recommended Depth of Discharge
Max. Depth of Discharge
Voltage
Certification
Pack
Max Charge/Discharge
Operating Temp
Storage Temp
Humidity Conditions
Lithium lon Battery
10 kWh
80%
90%
51.2 V
Cell: UL1642
Refer to UN38.3, UL9540A ,UL1973 CE RoHS and IEC62619
100A/200A
-10° to 50°C/14°F to 122F
15°to 30°C/59°F to 86°F
5% to 95%
MISCELLANEOUS
Installation
Weight
Dimensions
Warranty
Indoor/Outdoor
100 kg
(H x W x D)
760mm x 500mm x 215mm
10-year standard warranty
BATTERY MODULE BES 5K PACK
TECHNICAL SPECS
POWER
Battery Type
Capacity
Recommended Depth of Discharge
Max. Depth of Discharge
Voltage
Certification
Max Charge/Discharge
Operating Temp
Storage Temp
Humidity Conditions
Lithium lon Battery
5.12 kWh
80%
90%
51.2 V
Cell: UL1642
75A
-10° to 50°C / 14°F to 122°F
15° to 30°C / 59°F to 86°F
5% to 95%
MISCELLANEOUS
Installation
Weight
Dimensions
Warranty
Indoor/Outdoor
100 kg
(H x W x D)
760mm x 500mm x 215mm
10-year standard warranty
BATTERY MODULE EOS 5K
TECHNICAL SPECS
POWER
Battery Type
Capacity
Recommended Depth of Discharge
Max. Depth of discharge
Voltage
Certification
Max Charge/Discharge
Operating Temp
Storage Temp
Humidity Conditions
Lithium lon Battery
5.12 kWh
80%
90%
51.2 V
Cell: UL1642
Refer to UN38.3, UL1973 and IEC62619,CE ROHS
100A
-10° to 50°C / 14°F to 122°F
-30° to 60°C / -22°F to 140°F
5% to 95%
MISCELLANEOUS
Installation
Weight
Dimensions
Warranty
Indoors/Outdoors
146.8 kg / 324 lbs
(H x W x D)
1205mm x 654mm x 227mm 47.2” x 23.6“ x 7.9”
10-year standard warranty
BATTERY MODULE 6K PACK HV
TECHNICAL SPECS
POWER
Battery Type
Capacity
Recommended Depth of Discharge
Max. Depth of discharge
Voltage
Certification
Max Charge/Discharge
Operating Temp
Storage Temp
Humidity Conditions
Lithium lon Battery
6 kWh
80%
90%
153.6 V
Cell: UL1642
Refer to UN38.3, UL1973 and CE RoHS IEC62619
40 A
-10° to 45°C / 14°F to 113°F
-30° to 60°C / -22°F to 140°F
5% to 95%
MISCELLANEOUS
Installation
Weight
Dimensions
Warranty
Indoors/Outdoors
80 kg / 176 lbs
(H x W x D)
905mm x 654mm x 227mm 35.4” x 25.7“ x 9.0”
10-year standard warranty
BATTERY MODULE 10K PACK HV
TECHNICAL SPECS
POWER
Battery Type
Capacity
Recommended Depth of Discharge
Depth of discharge
Voltage
Certification
Max Charge/Discharge
Operating Temp
Storage Temp
Humidity Conditions
Lithium lon Battery
10 kWh
80%
90%
268.8 V
Cell: UL1642
Refer to UN38.3, UL1973 CE RoHS and IEC62619
40A/40A
-10° to 50°C / 14°F to 122°F
-30° to 60°C / -22°F to 140°F
5% to 95%
MISCELLANEOUS
Installation
Weight
Dimensions
Warranty
Indoors/Outdoors
103 kg / 227 lbs
(H x W x D)
971mm x 654mm x 227mm 38.2” x 25.7“ x 8.9”
10-year standard warranty
BATTERY MODULE 15K PACK HV
TECHNICAL SPECS
POWER
Battery Type
Capacity
Recommended Depth of Discharge
Max. Depth of discharge
Voltage
Certification
Pack
Max Charge/Discharge
Operating Temp
Storage Temp
Humidity Conditions
Lithium lon Battery
15 kWh
80%
90%
384 V
Cell: UL1642
Refer to UN38.3, UL1973,CE RoHS and IEC62619 design
40A/40A
-10° to 50°C / 14°F to 122°F
-30° to 60°C / -22°F to 140°F
5% to 95%
MISCELLANEOUS
Installation
Weight
Dimensions
Warranty
Indoors/Outdoors
146.8 kg / 324 lbs
(H x W x D)
1205mm x 654mm x 227mm 47.2” x 23.6“ x 7.9”
10-year standard warranty
VOLANS PORTABLE POWER STATION
TECHNICAL SPECS
POWER
Battery Type
Capacity
AC Power
Recommended Depth of Discharge
Max. Depth of Discharge
Input Voltage
Operation Tem
Relative humidity(%RH)
DC Output
Lithium lon Battery
1.28 kWh
1200W
80%
90%
110V AC / 230V AC
-10℃ to 40℃ / 14° F to 104°F
5%-95%
Car charger output*2：12V/10A USB*2.5V/2.1A
Type-C*4:5VDC,9VDC,15VDC,20VDC Max Output current 3A Max Output power 60W
MISCELLANEOUS
Weight
Dimensions
14 kg
(H x W x D)
380mm x 215mm x 210mm 14.9” x 8.46“ x 8.26”
Cactus A15/A30
TECHNICAL SPECS
POWER
Battery Type
Capacity
Recommended Depth of Discharge
Max. Depth of discharge
Output Voltage
Max PV input power
Operation Tem
Storage Temp
Relative humidity
Lithium lon Battery
1.5 / 3.0 kWh
80%
90%
110V AC / 230V AC
800W (A30) ,400W (A15)
-10° to 40°C / 14°F to 104°F
15° to 30°C / 59°F to 86°F
5% to 95%
MISCELLANEOUS
Installation
Weight
Dimensions
Warranty
Indoor/Outdoor
15 /32 kg
(H x W x D)
380mm x 350mm x 160mm
10-year standard warranty
POWER BANK S4
TECHNICAL SPECS
POWER
AC Power
AC Voltage
PV MPPT Voltage
Battery Type
Capacity
Battery Voltage
Max Charge/Discharge
Recommended Depth of Discharge
Max. Depth of discharge
Battery Modules
HDMI Interface
Operating Temperature
Certification
Pack
System
3600W
230 VAC 50/60 Hz
125-425 VDC
Lithium lon Battery
5.12 kWh
51.2 VDC
50 A
80%
90%
1
7" LCD
-10° to 45°C / 14°F to 113°F
Cell: UL1642
Refer to UN38.3, UL1973,and IEC62619 design
UL9540, IEC/EN 62109
MISCELLANEOUS
Installation
Weight
Dimensions
Warranty
Floor Install in indoor and/or covered outdoor area, or inside a power bank casing.
138 kg / 303.6 lbs
(H x W x D)
1230mm x 700mm x 340mm 48.4” x 27.6“ x 13.4”
5-year standard warranty
Optional 5-year extension
POWER BANK S8
TECHNICAL SPECS
POWER
AC Power
AC Voltage
PV MPPT Voltage
Battery Type
Capacity
Battery Voltage
Max Charge/Discharge
Recommended Depth of Discharge
Max. Depth of discharge
Battery Modules
HDMI Interface
Operating Temperature
Certification
Pack
System
5000 W / 6000 W / 8000 W
120VAC & 240VAC
125-425 VDC
LFP
10.24 kWh
51.2 VDC
100 A
80%
90%
2
7" LCD
-10° to 45°C / 14°F to 113°F
Cell: UL1642
Refer to UN38.3, UL1973,and IEC62619 design
UL9540, IEC/EN 62109
MISCELLANEOUS
Installation
Weight
Dimensions
Warranty
Floor Install in an indoor and/or covered outdoor area.
240 kg / 528 lbs
(H x W x D)
1330mm x 750mm x 565mm 52.4” x 29.5“ x 22.2”
5-year standard warranty
Optional 5-year extension
POWER BANK S12
TECHNICAL SPECS
POWER
AC Power
AC Voltage
PV MPPT Voltage
Battery Type
Capacity
Battery Voltage
Max Charge/Discharge
Recommended Depth of Discharge
Max. Depth of discharge
Battery Modules
HDMI Interface
Operating Temperature
Certification
Pack
System
5000W / 6000W / 8000W
230VAC 50/60Hz / 120VAC & 240VAC
125-425 VDC
Lithium lon Battery
15.36 kWh
51.2 VDC
100 A
80%
90%
3
7" LCD
-10° to 45°C / 14°F to 113°F
Cell: UL1642
Refer to UN38.3, UL1973,and IEC62619 design
UL9540, IEC/EN 62109
MISCELLANEOUS
Installation
Weight
Dimensions
Warranty
Floor Install in indoor and/or covered outdoor area.
300 kg / 660 lbs
(H x W x D)
1330mm x 750mm x 565mm 52.4” x 29.5“ x 22.2”
5-year standard warranty
Optional 5-year extension
POWER CELL
TECHNICAL SPECS
POWER
Battery type
Total Energy Capacity
Usable Energy Capacity
Battery Capacity
Voltage Range
Nominal Voltage
Max Charge/Discharge
Recommended Depth of Discharge
Max. Depth of diacharge
Power consumption
Operating Temperature
Certification
Lithium lon battery
150kWh
135kWh
200Ah
672-840V
769V
100 A / 200A
80%
90%
TBD
-10℃ to 50℃
TBD
